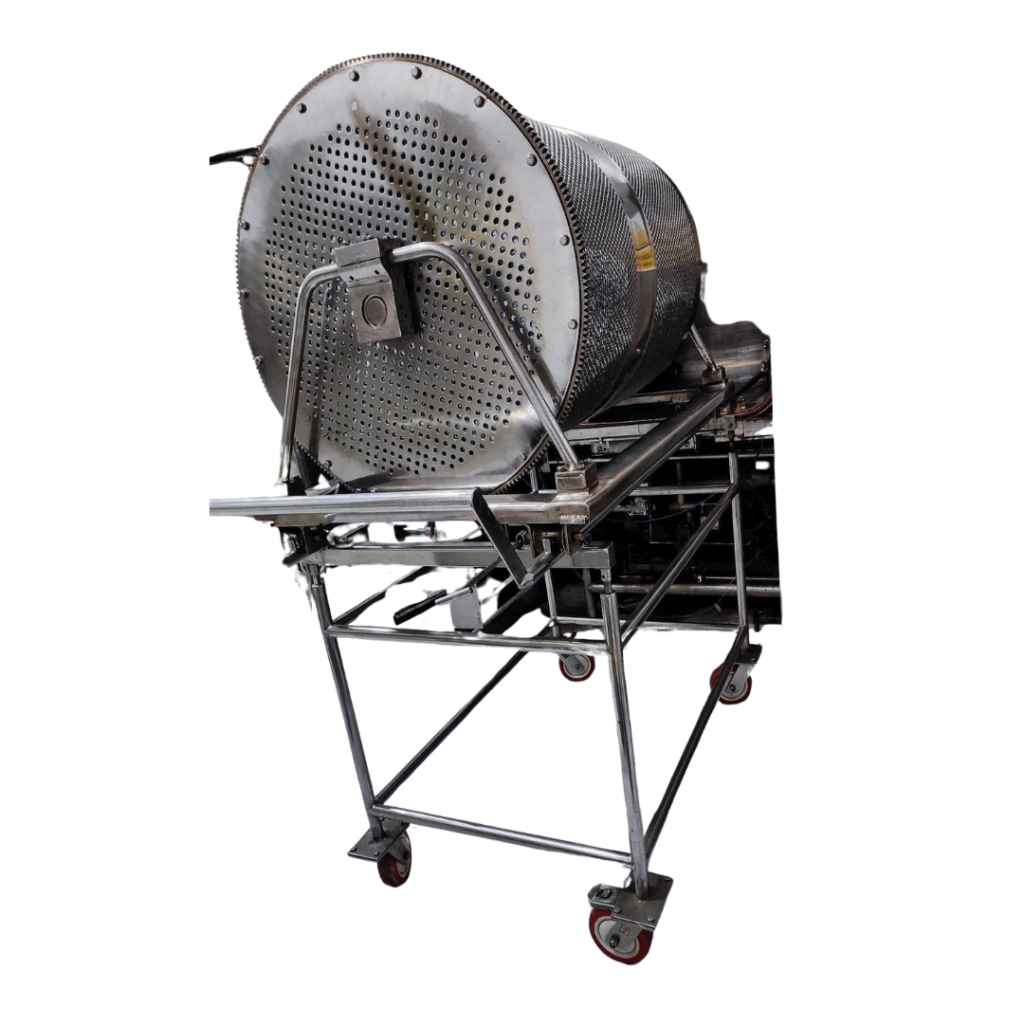

Bung Processor Cum Sterilizer
- Siliconization of Bungs by adding Silicone Oil at 80O C after complete Washing
- Bung Processing Cycle follows the CIP mode of Operation.
- Vacuum Pulsing for Removal of Air Pockets before starting Sterilization.
- Sterilization at 121O C for 30 mins at uniform Temperature and Pressure.
- Double Layer Sterile Bag Transfer of the Bungs by Elephant Nose.
- Discharging Device inside the Isolation Cabinet with automatic Heat Sealing Machine.
- MOC- All contact parts in SS316 and Rest parts SS304/SS316 (as required) Available in different capacities, as per requirement.
Our Features :-
- Engineered to comply with the World Standards.
- Used for Washing, Processing, Sterilization and Transfer of Rubber Bungs and Stoppers.
- PLC/HMI based Automation for better Process Control and Monitoring.
- Pneumatically Operated Sliding Doors with Interlocking.
- Removable and Roller-mounted Rotating Vessel for loading the Rubber Bungs.
- Cleaning and Washing of Bungs by Purified water /WFI through Central Spray Tube.
- Agitation by Air from the bottom of the Rotating Vessel for effective cleaning
- Bungs are dried by Vacuum Drying followed by Hot Air Drying and Cooling of Bungs.
